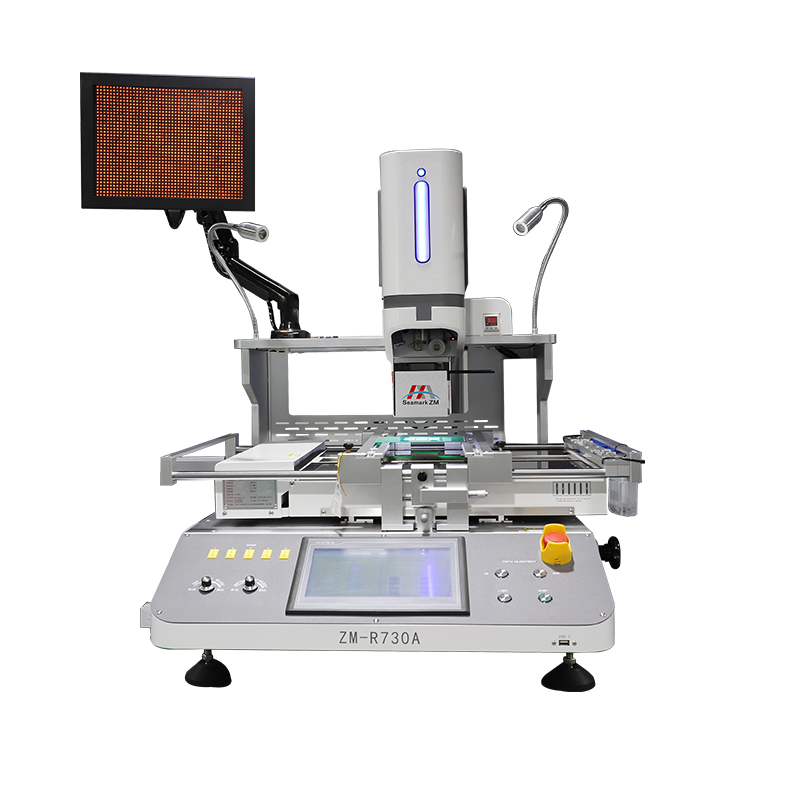

ZM-R730A is a high optical alignment and intelligent control device with the following features: automatic feeding, using Panasonic PLC and high-precision temperature control module, high-precision K-type thermocouple, dynamic PID multi closed-loop control selective reflow soldering process, with an accuracy of ± 1 ℃. Over temperature protection alarm function, software encryption and foolproof function, and also equipped with a large high-definition touch screen.
| 型號 | ZM-R730A | |
|---|---|---|
| Equipment Performance Parameters | Power Supply | AC380V±10% 50/60HZ |
| Power | 7.75KW (Max) Top zone (1.45KW) Bottom zone (1.2KW) Preheating zone (4.8KW) Other (0.3KW) | |
| PCB Size | 632x520mm(Max); 6x6mm(Min) | |
| BGA Chip Size | 80x80mm（Max) ; 3x3mm (Min) | |
| IR Temp. Zone Size | 570x435mm | |
| Temp. Sensor | 5 PCS | |
| Operation Method | 10“ HD large touch screen | |
| Control System | Panasonic PLC+ Temp.control module | |
| Display System | 15“ HD industrial display screen (1080P 16:9) | |
| Vacuum Adsorption | Automatic | |
| Alignment System | 2m high-definition digital imaging system, automatic optical zoom + laser red dot indicator | |
| Alignmenr Accuracy | ±0.01mm | |
| Temp. Control | K-type thermocouple closed-loop control with accuracy up to ±1°C | |
| Feeding Device | Yes | |
| Positioning | V-groove and universal fixture (shaped fixture can be customized) | |
| Dimensions | L1000xW835×H960mm | |
| Weight | 130.5KG |
