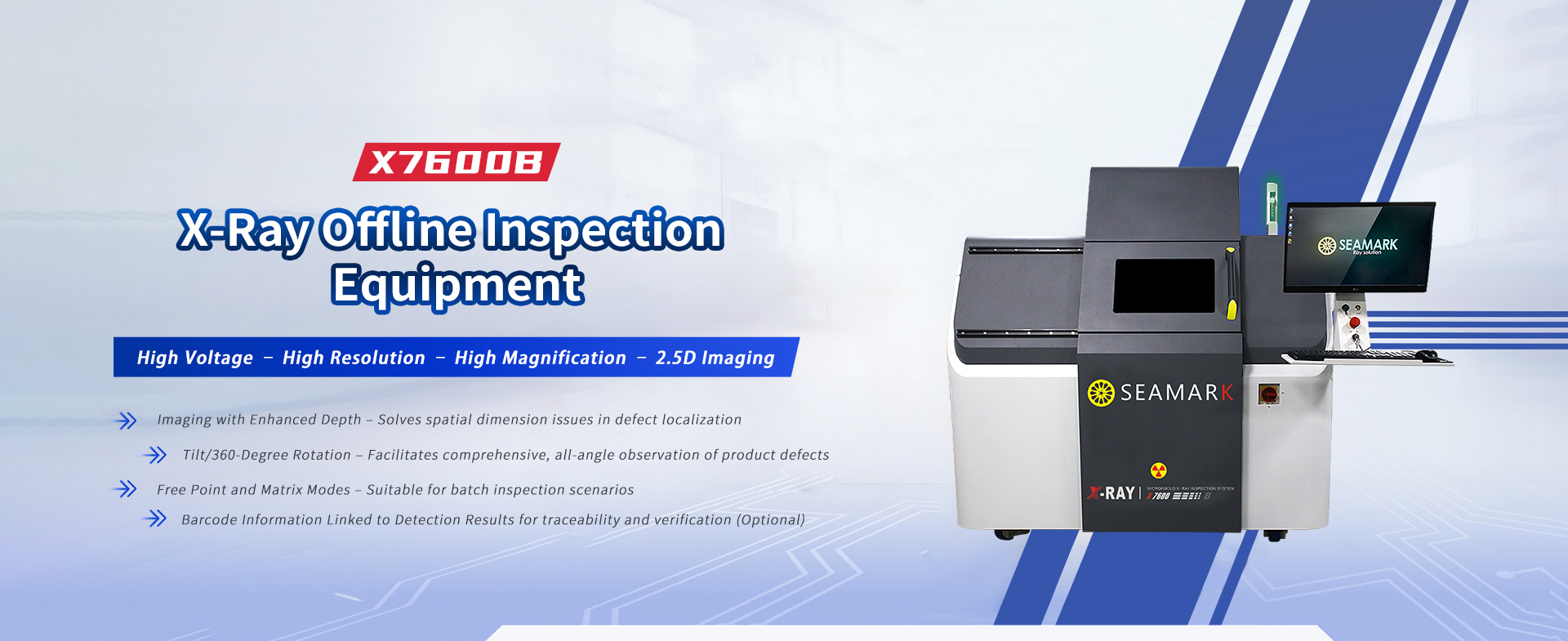

X7600B is a powerful high-end precision micro-focus X-ray intelligent inspection equipment, equipped with innovative self- developed intelligent inspection software and a new generation of image algorithms. lt adopts a high-voltage X-ray tube design with strong penetration and high image quality. lt has a 2.5D imaging function and can achieve 360-degree,all-round observation of product defects. lt is widely used in printed circuit boards(PCBs), microchips (lCs), mobile phones, power devices and other product inspections
| 型號(hào) | X7600B | |
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 40-130KV | |
| Tube Current | 10-300μA | |
| Maximum Output Power | 39W | |
| Micro Focus Size | 5μm(4W) - 40μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Dimensions | L1700mm x W1770mm x H1800mm |
| Input Power | 220V 10A 50-60HZ | |
| Platform Size | 510mm × 510mm | |
| Control System | Industrial Compiter Win10 64bits | |
| Net Weight | 2050KG |
