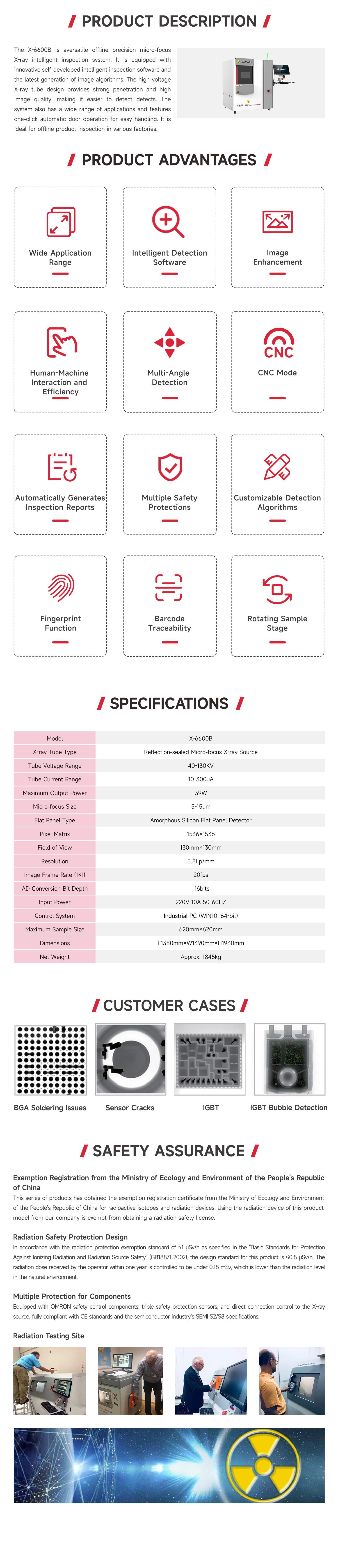

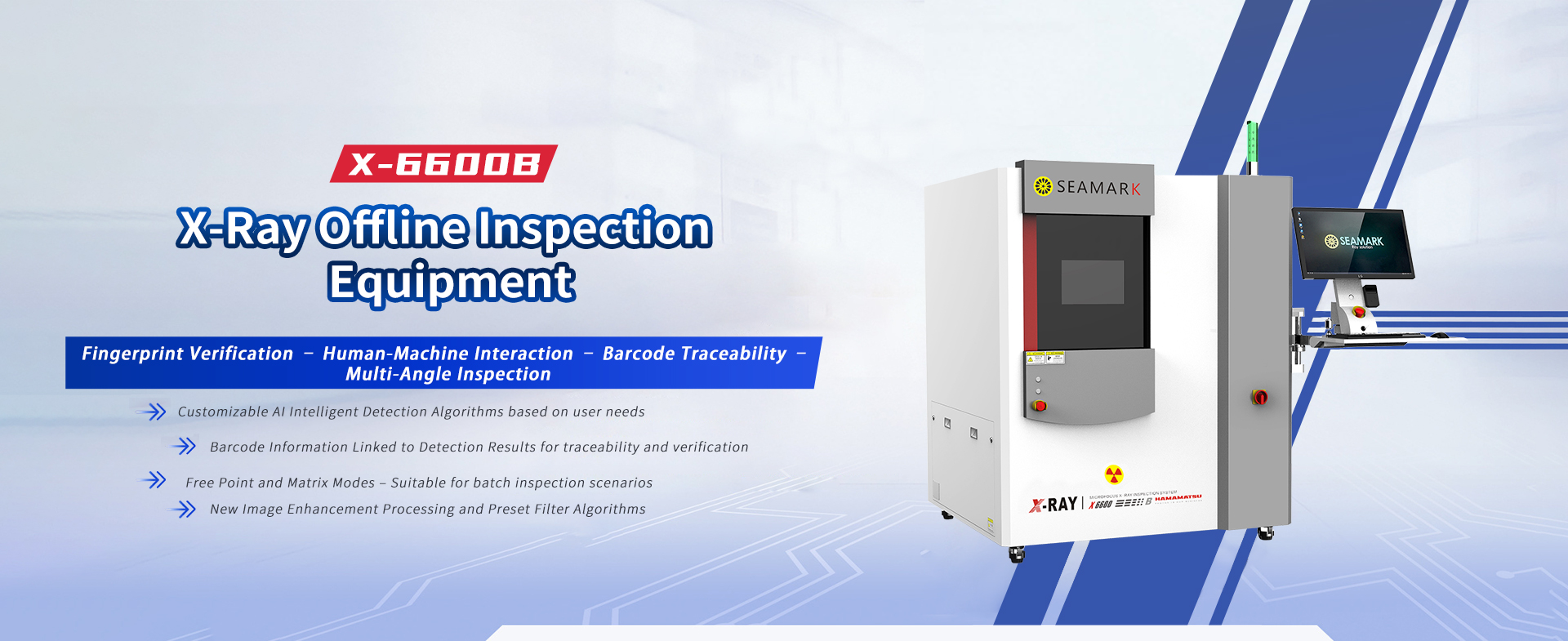

X6600B is a universal offline precision micro-focus X-ray intelligent inspection equipment, equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt adopts a high-voltage X-ray tube design with strong penetration, high image quality, easy to find defects, and a wider range of applications. One-button automatic opening and closing of the
movable door facilitates personnel operation. Suitable for the inspection of offline products in various factories.
| 型號(hào) | X-6600B | |
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 40-130KV | |
| Tube Current | 10-300μA | |
| Maximum Output Power | 39W | |
| Micro Focus Size | 5μm(4W) - 40μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mmx130mm | |
| Resolution | 5.5Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Input Power | 220V 10A 50-60Hz |
| Control System | Industrial Computer Win10 64 bits | |
| Platform Size | 620mmx620mm | |
| Dimensions | L1380mm×W1425×H1951mm | |
| Net Weight | 1800KG |
