X5600 X-Ray Offline Inspection Equipment
Product X-ray intelligent inspection equipment Integrated circuit X-Ray X5600 X-Ray Offline Inspection Equipment

產品介紹

PRODUCT INTRODUCTION

X5600 is a small precision micro-focus X-ray intelligent inspection device, equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt has clearer imaging, is easy to operate, and occupies a small space.lt is suitable for R&D laboratories. offices, quality inspection rooms and other places. lt is the preferred equipment for X-ray inspection of micro-precision

devices.


產品特點

PRODUCT FEATURES
  • Equipment miniaturization
    The equipment is miniaturized and easy to place and use
  • High resolution
    High-resolution design to obtain the best image in a very short time
  • Tilt/rotate multiple angles
    It has tilt detection function, can observe device features from multiple angles, and is equipped with a rotating manipulator that can rotate 360 ??degrees to take pictures, so that defects can be observed without blind spots.
  • CNC inspection
    CNC detection mode, fast and automatic detection for multi-point arrays

產品參數

SPECIFICATION
型號 X5600
X-Ray Tube X-ray Tube Type Reflective Sealed Micro-focus X-ray Source
Tube Voltage 0-90KV
Tube Current 0-200μA
Maximum Output Power 8W
Image Frame Rate (1×1) 15μm
Flat Panel Detector Flat Panel Type Amorphous Silicon Flat Panel Detector
Pixel Matrix 1536×1536
Field of View 130mmx130mm
Resolution 5.5Lp/mm
Image Frame Rate (1×1) 20fps
AD Conversion Digits 16bits
Equipment Specifications Input Power 220V 10A 50-60HZ
Control System Industrial Computer Win10 64 bits
Maximum Sample Size 280mmx320mm
Dimensions L850mmxW1000mmxH1700mm
Net Weight 750KG

產品詳情

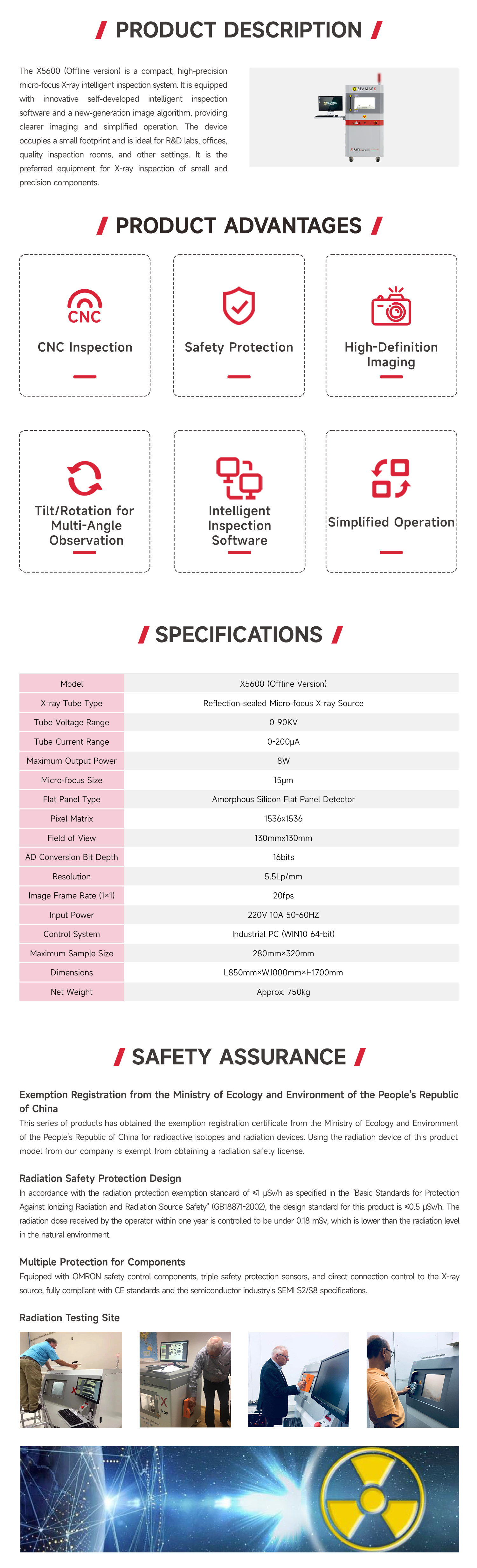

Product Details
