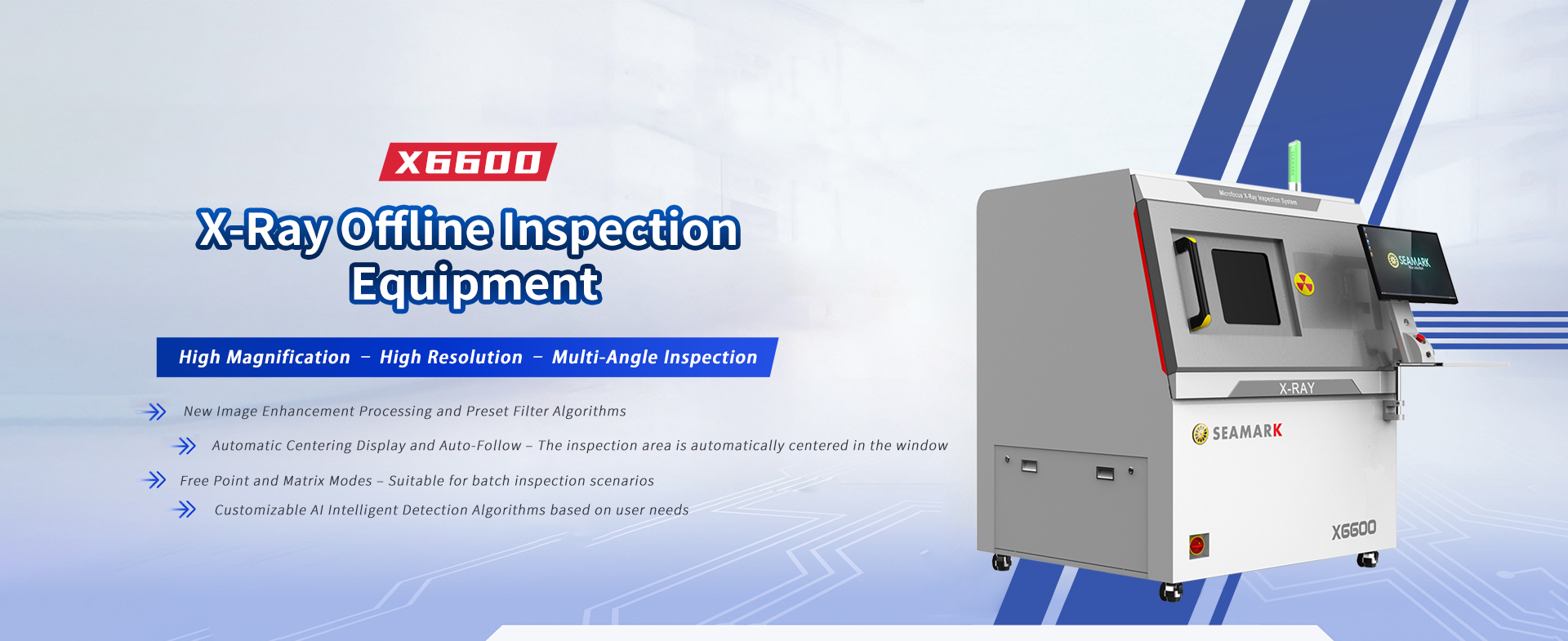

X6600 is a cost-effective general-purpose offline precision micro-focus X-ray intelligent inspection equipment, equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt has the characteristics of high magnification, high resolution, multi-angle inspection, large area inspection platform, etc. lt meets the general X-ray inspection needs and has a wide range of applications. lt is suitable for the inspection of offline products in various factories.
| 型號(hào) | ||
|---|---|---|
| X-Ray Tube Type | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 0-90KV | |
| Tube Current | 0-200μA | |
| Maximum Output Power | 8W | |
| Micro Focus Size | 10μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Dimensions | L1245×W1230×H1900mm |
| Input Power | 220V 10A 50-60HZ | |
| Platform Size | 540mm×440mm | |
| Control System | Industrial Compiter Win10 64bits | |
| Net Weight | 1170KG |
