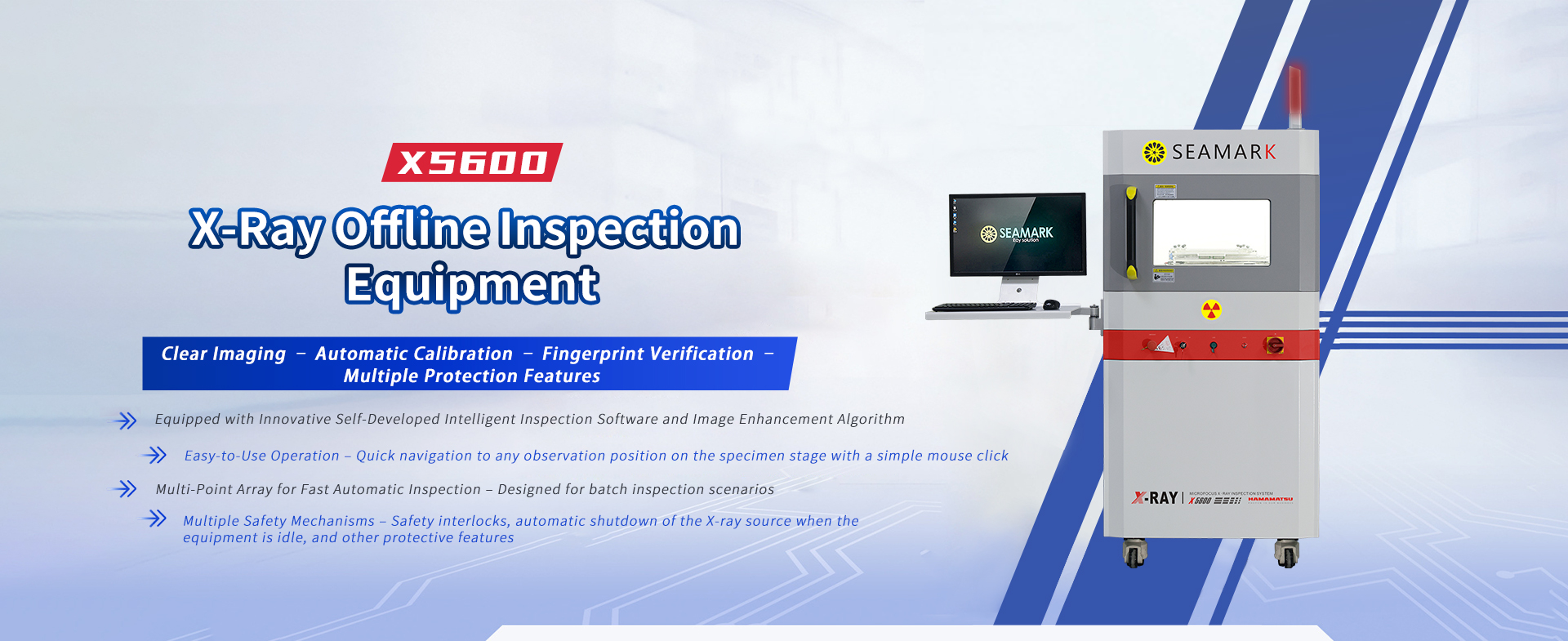

X5600 is a small precision micro-focus X-ray intelligent inspection device,equipped with innovative self-developed intelligent inspection software and a new generation of image algorithms. lt has clearer imaging, is easy to operate, and occupies a small space. lt is suitable for R&D laboratories, offices, quality inspection rooms and other places. lt is the preferred equipment for X-ray inspection of micro-precision
devices.
| 型號 | ||
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Reflective Sealed Micro-focus X-ray Source |
| Tube Voltage | 0-90KV | |
| Tube Current | 0-200μA | |
| Maximum Output Power | 8W | |
| Micro Focus Size | 15μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
| Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate (1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Dimensions | L850mm×W1000mm×H1700mm |
| Input Power | 220V 10A 50-60HZ | |
| Maximum Sample Size | 280mm×320mm | |
| Control System | Industrial Compiter Win10 64bits | |
| Net Weight | 750KG |
