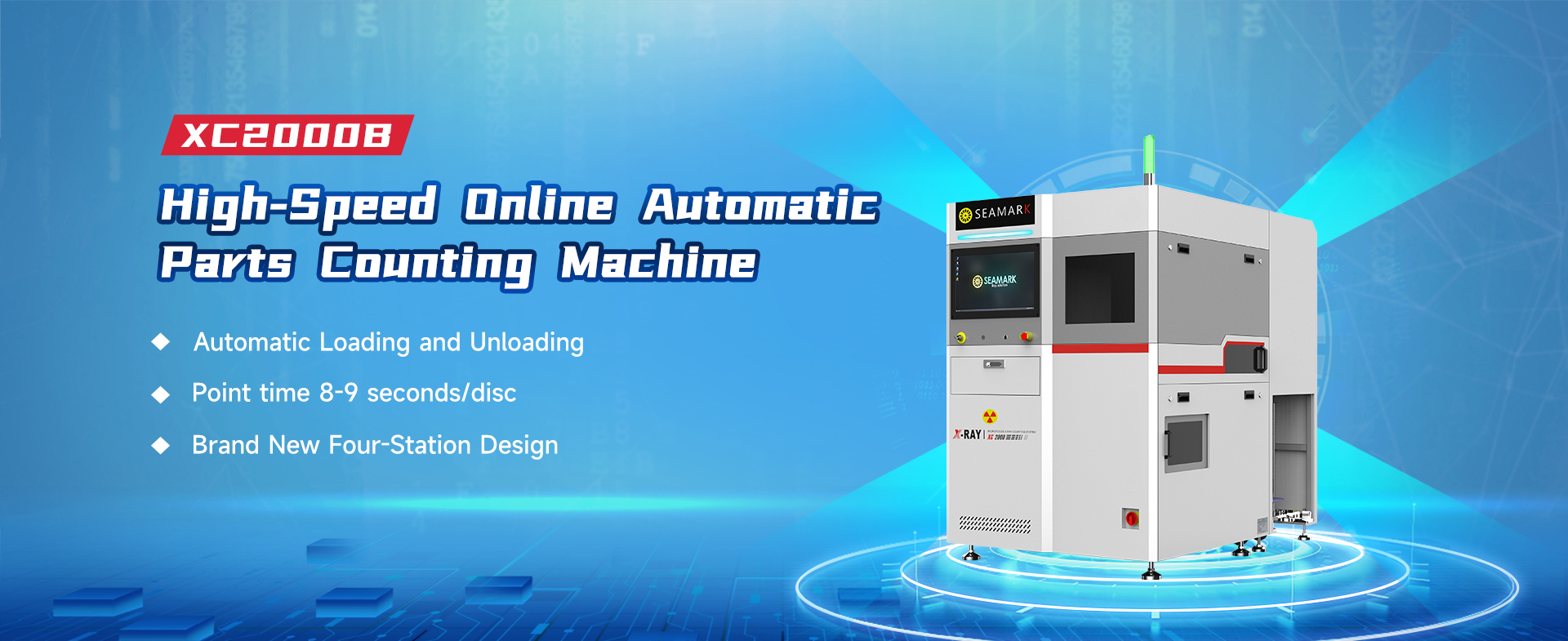

XC2000B X-Ray High-Speed Inline Counting Machine

產品介紹

PRODUCT INTRODUCTION

XC2000 (high-speed version) is a high-speed inline automatic counting machine with innovative self-developed Al intelligent counting algorithm software, a counting speed of 8-9 seconds/tray, and a turntable with four working positions to achieve automatic loading, code reading, counting, labeling, review and unloading at high speed. lt is designed for the electronics manufacturing industry to help SMT smart warehousing realize fully automatic material counting, which can greatly improve work efficiency and save manpower investment.


產品特點

PRODUCT FEATURES
  • Counting time
    8~12 seconds/reel, high-speed counting greatly reduces counting time and saves manpower
  • New four-station design
    Four-station turntable with automatic defective product sorting
  • Data statistics output
    Can be connected to MES/ERP/WMS and other systems to interact with material data in real time
  • Transcoding function
    Automatically generate customer labels based on code reading result matching rules

產品參數

SPECIFICATION
型號 XC2000(B)
X-Ray Tube X-ray Tube Type Reflective Sealed Micro-focus X-ray Source
Tube Voltage 30-80KV
Tube Current 200-700 μA
Maximum Output Power 56 W
Micro Focus Size 33μm
Flat Panel Detector Flat Panel Type Amorphous Silicon Flat Panel Detector
Pixel Matrix 3072×3072
Field of View 427mm×427mm
Resolution 3.6Lp/mm
Image Frame Rate (1×1) 1fps
AD Conversion Digits 16bits
Equipment Specifications Reel Size 7”-15”Tape Reel
Reel Height 8-80mm
Minimum Components 01005
System Connection MES/ERP/WMS etc.
Input Power 220V 10A 50-60HZ
Control System Industrial Computer WIN 64 Bits
Dimensions L1894mmxW1864mmxH2100
Net Weight 2200KG

產品詳情

Product Details
