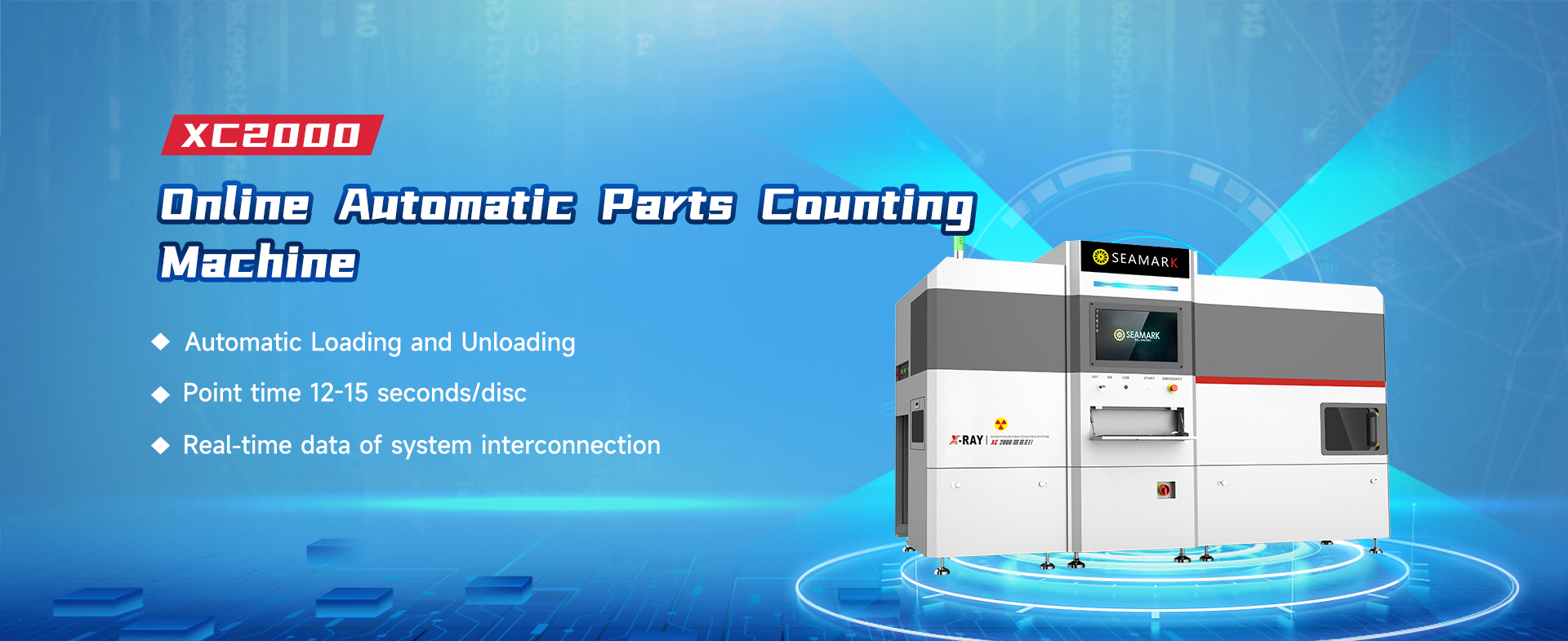

XC2000 is an inline automatic counting machine with innovative self-developed Al inteligent counting algorithm software, a counting speed
of 12~15 seconds/reel, accurate calculation of the number of materials in the reel, and support for a variety of feeding methods such as
fully automatic or manual. The equipment can automaticaly read codes, label, and review, helping SMT smart warehousing to achieve fully
automatic material inventory, improve work efficiency, and save manpower investment.
| 型號 | XC2000 | |
|---|---|---|
| X-Ray Tube | X-ray Tube Type | Amorphous Silicon Flat Panel Detector |
| Tube Voltage | 30-80KV | |
| Tube Current | 200-700 μA | |
| Maximum Output Power | 56W | |
| Micro Focus Size | 33μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 3072×3072 | |
| Field of View | 427mm×427mm | |
| Resolution | 3.6Lp/mm | |
| Image Frame Rate (1×1) | 1fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Reel Size | 7”-15”Tape Reel |
| Reel Height | 8-80mm / 60-80mm (manual counting) | |
| Minimum Components | 01005 | |
| System Connection | MES/ERP/WMS etc. | |
| Input Power | 220V 10A 50-60HZ | |
| Control System | Industrial Computer WIN 64 Bits | |
| Dimensions | L3100mmxW1600mmxH2100mm | |
| Net Weight | 2200KG |
