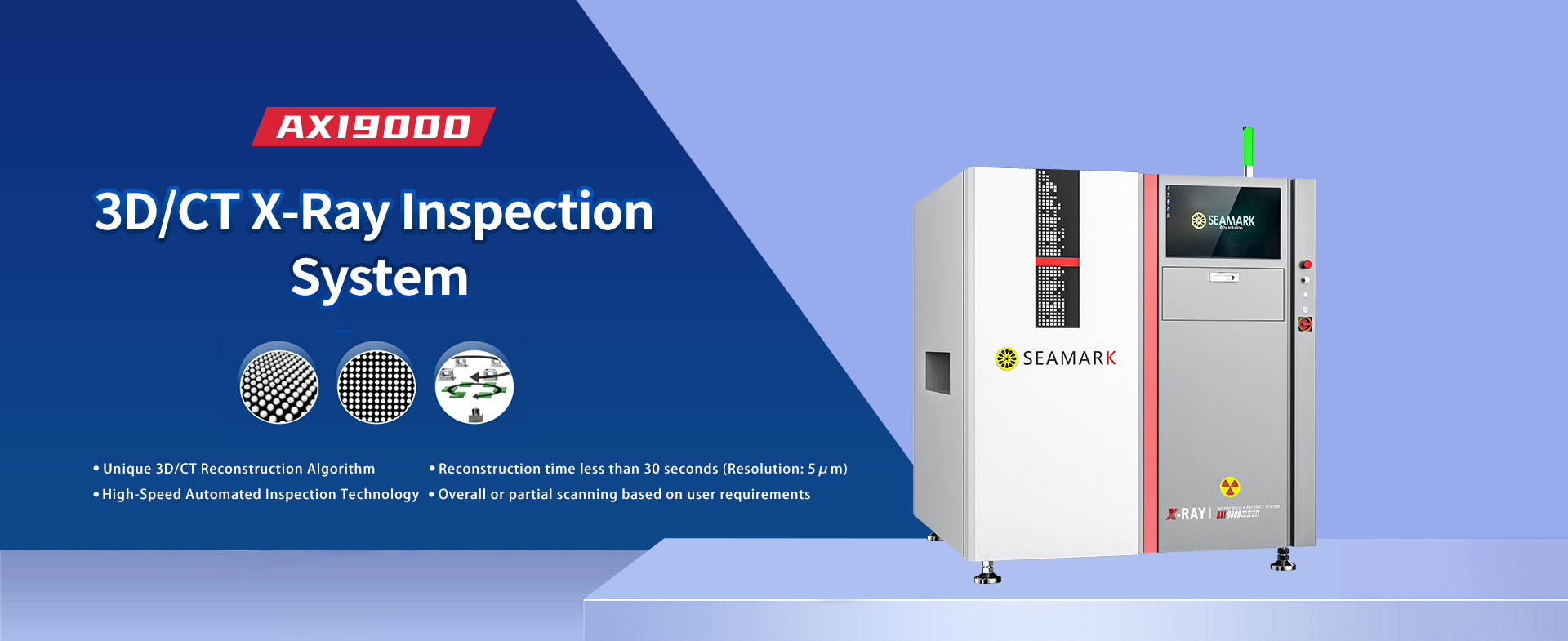

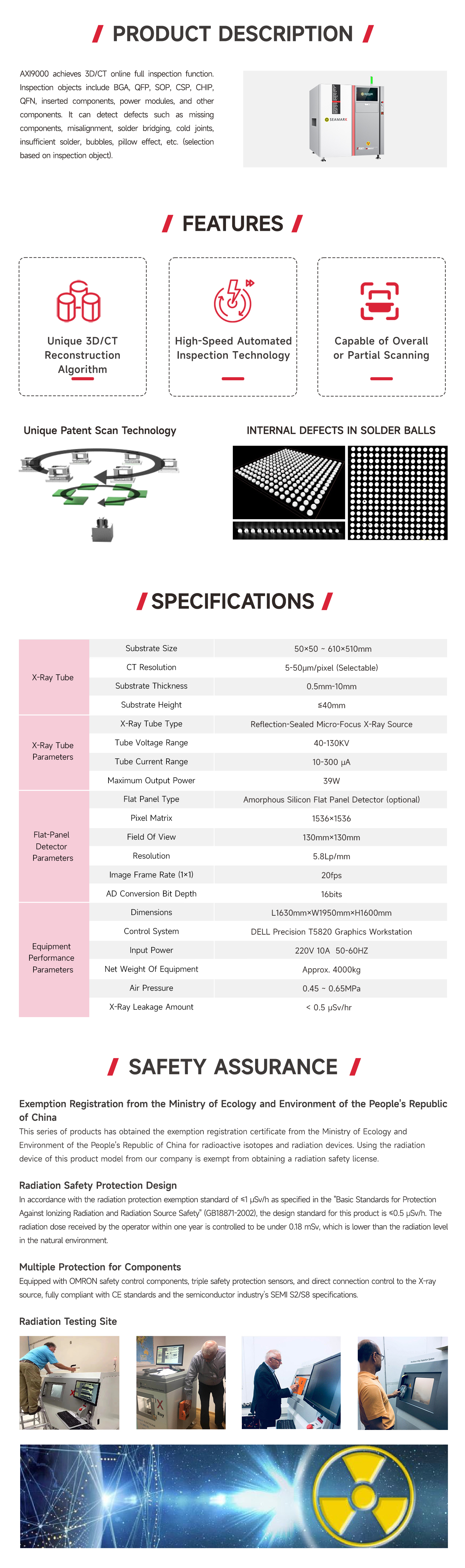

AX19000 is a high-speed CT-type fully automatic inspection system, equipped with innovative self-developed intelligent inspection software, enabling high-speed 3D inspection. It can inspect a wide range of components, including BGA, POP, LGA, QFP, CSP, CHIP, QFN, DIP inserted components, lGBT, and more. lt is capable of detecting defect such as missing components,misalignment, solder bridging, open solder joints, insufficient solder, voids, pillow effect, and other issues.
| 型號(hào) | ||
|---|---|---|
| Flat Panel Detector | Flat Panel Type | Flat Panel Detector (Optional) |
| Pixel Matrix | 1536×1536 | |
| Field of View | 154mm×154mm | |
| Resolution | 5.0Lp/mm | |
| Image Frame Rate(1x1) | 30fps | |
| AD Conversion Digits | 16bits | |
| X-Ray Tube | X-Ray Tube Type | Reflective Sealed Micro-focus Ray Source (Optional) |
| Tube Voltage Range | 50-130KV | |
| Tube Current Range | 0-500 μA | |
| Maximum Tube Power | 65W | |
| Substrate Inspection | Substrate Size | 50×50 - 610×510mm |
| CT Resolution | 6-50μm/pixel（3μm Optional） | |
| Substrate Thickness | 0.5mm-10mm | |
| Substrate Height | Upper Part≦50mm Lower Part≦40mm | |
| Equipment Specifications | X-Ray Leakage | <0.5μSv/hr |
| Air Pressure | 0.45~0.65MPa | |
| Input Power | 220V 10A 50-60HZ | |
| Operation System | Professional GPU Image Workstation | |
| Dmensions | L1630mm×W1950mm×H1600mm | |
| Net Weight | Around 4000KG |
