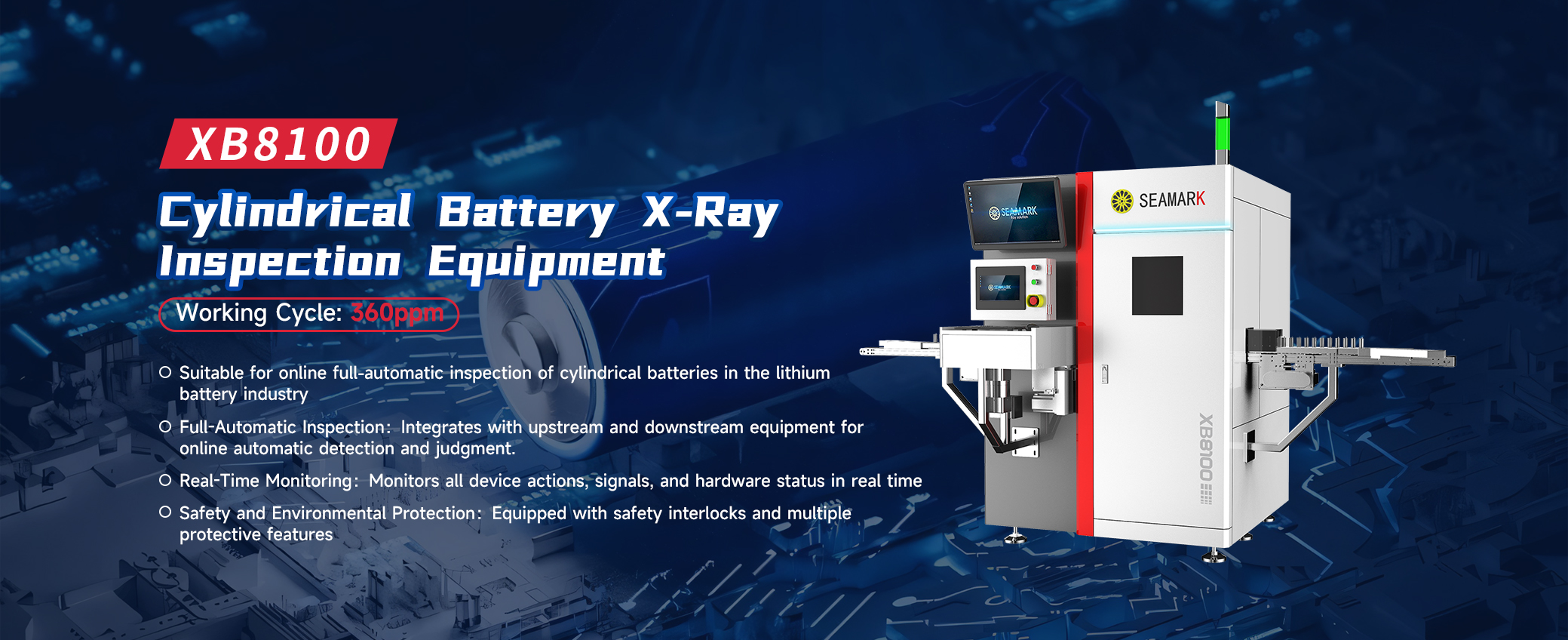

XB8100 enables fully automatic inline inspection of various models of cylindrical batteries. It integrates with upstream and downstream logistics lines, allowing for efficient transfer of items for inspection. lt automatically sorts out defective(NG) products and outputs acceptable (OK) products to the output logistics line, which then enters downstream equipment (optional automatic reflow for secondary retesting).
| 型號 | ||
|---|---|---|
| X-ray Tube | X-ray Tube Type | Reflection-sealed Micro-focus X-Ray Source |
| Tube Voltage Range | 130KV | |
| Tube Current Range | 300μA | |
| Maximum Output Power | 39W | |
| Flat Panel Detector | Micro-focus Size | 5-15μm |
| Flat Panel Type | Line-array TDI Detector | |
| Field of View | 205mmx6mm | |
| Resolution | 5Lp/mm | |
| AD Conversion Bits | 16bits | |
| Equipment Specifications | Inspection Accuracy | 15μm |
| Repeatability Accuracy | ±30μm | |
| Inspection Efficiency | ≥200ppm | |
| False Positive Rate | ≤1.5% | |
| False Negative Rate | 0.0% | |
| Product Pass Rate | ≥99.5% | |
| Input Power | 3-phase 80V/50HZ approx. 4500W | |
| Control System | Industrial Computer WIN 64-bit | |
| International Radiation Safety Standard | ≤1usv/hr | |
| Inspection Range | 14450/18650/21700/26650/32700/4680 | |
| Dimensions | L5000xW1800xH1900 | |
| Net Weight | 4000KG |
